40%
Reduced manpower
30%
Improvement in efficiency
BACKGROUND

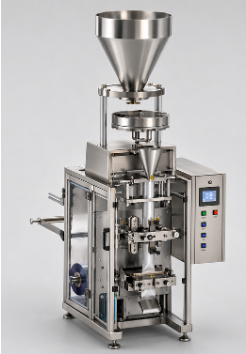

Design requirement of form fill seal packaging — powder to bags.
CHALLENGE
- Achieving accurate powder filling consistency
- Reducing product wastage during packaging
- Maintaining high-speed operation with precision
- Ensuring smooth film feeding without misalignment
- Minimizing machine downtime during changeovers
APPROACH
-

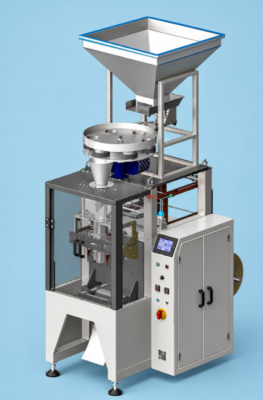

Designed complete 3D machine assembly in NX
-
Performed mechanism validation using motion simulation
-
Optimized sealing and filling station layout
-
Integrated servo-based control for synchronized operation
-
Conducted interference and clearance analysis
-
Validated machine sequence through digital simulation
