40%
Reduced
manpower
35%
Improvement
efficiency
BACKGROUND

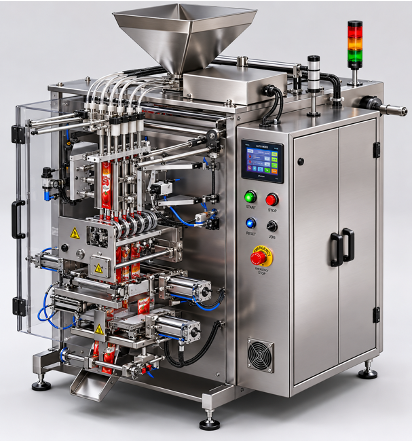

Design requirement of ketchup stick pack machine.
CHALLENGE
- Achieving accurate ketchup dosing in each stick pack
- Preventing leakage during filling and sealing
- Synchronizing filling, sealing, and cutting operations
- Maintaining consistent stick pack dimensions
- Handling viscous product flow smoothly
- Reducing machine downtime during cleaning and maintenance
APPROACH
- Developed complete 3D machine assembly in NX
- Designed precision liquid filling mechanism

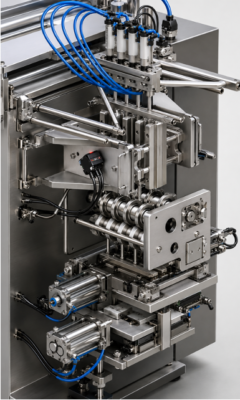

- Optimized nozzle and sealing jaw arrangement
- Performed motion simulation for cycle validation
- Conducted interference and clearance checks
- Integrated pneumatic actuation for synchronized operation
- Validated machine sequence through digital simulation
